Car Park and Warehouse Guardrail Systems

RhinoStop® is a range of modular guardrail systems designed for Australian car parks, warehouses and industrial sites. Each RhinoStop system is designed to absorb the kinetic energy of a vehicle impact, reducing peak forces and limiting damage to the anchor bolts and structure.

RhinoStop guard railing is all-steel and modular, designed for quick installation. RhinoStop has become the industry-preferred guardrail for multi-storey car parks, manufacturing facilities and logistics warehouses. RhinoStop guardrails are part of our complete range of barrier systems.

How RhinoStop works

Each RhinoStop post features a patented, yielding baseplate designed to absorb vehicle impact energy. A series of cuts into the baseplate allows the baseplate to deform, reducing peak loads. As the baseplates deform, the system deflects and distributes forces to adjacent posts. This yielding behaviour reduces loads on the anchors, minimising the potential for damage to the concrete substrate. Each RhinoStop configuration is full-scale crash tested to evaluate the capacity of the system and compliance with Australian Standards.

For more information on our crash test methodology, please visit the impact compliance page.

Built to be modular

Providing a modular design ensures the system can be assembled using off-the-shelf components. This reduces lead times and facilitates rapid installation. The RhinoStop team will assist in calculating the amount of materials required for your project to ensure the installed barrier represents the crash-tested configurations. The all-metal construction is galvanised, providing a durable finish. Items can be powder-coated to enhance aesthetics or highlight the safe passage of travel for pedestrians or motorists.

The RhinoStop Guardrail range

RhinoStop Standard

Latest innovation in modular car park guardrail barrier systems providing superior design, rapid installation and driver confidence.

RhinoStop Elite

Fully modular car park guardrail safety barrier system, incorporating architectural excellence and superior design.

RhinoStop Truck-Guard

Heavy duty, high containment car park guardrail safety barrier system.

RhinoStop Sky-Edge

Zero footprint car park guardrail safety barrier system, positioned on the outer edge of the concrete deck.

RhinoStop Heavy Duty

Car park guardrail safety barrier system providing heavy duty protection and designed for high energy impacts.

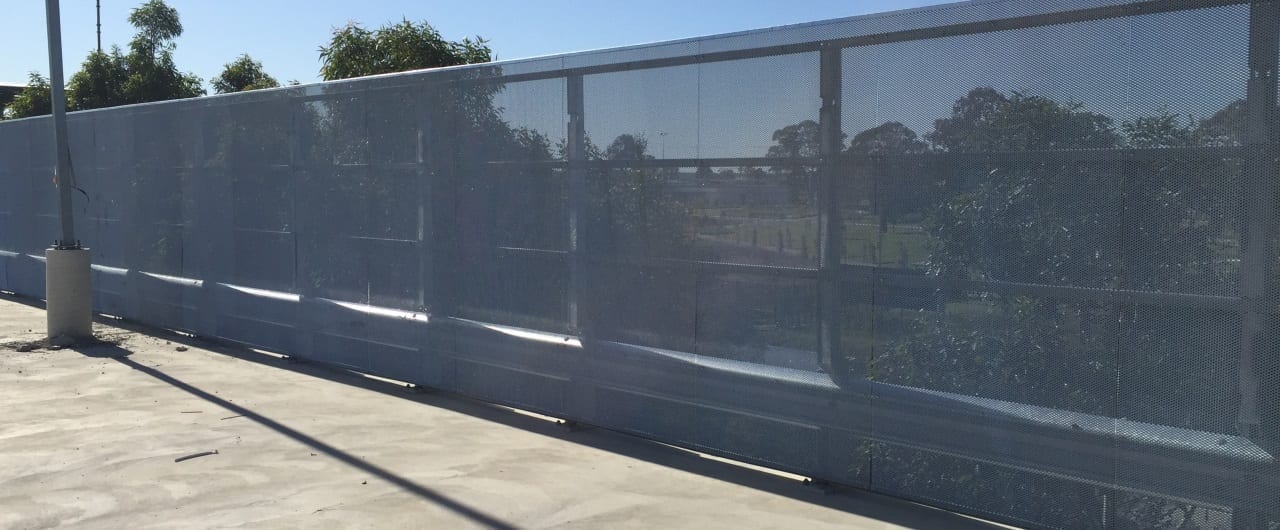

RhinoStop Screen

Fully modular and free-standing car park guardrail safety barrier system, providing floor to ceiling protection.

RhinoStop® Elite Fencing

Safe Direction’s fully modular pedestrian fencing system incorporates an aesthetically pleasing design with containment capacity.

Frequently Asked Questions

A guardrail barrier is designed to withstand vehicle impacts in car parks and warehouses. In a warehouse or industrial facility, guardrails are installed to shield walkways and provide safe passage for pedestrians and prevent vehicle collisions with valuable plant and equipment. They may be installed near doorways or to shield columns, pallet racking or machinery. In car parks, guardrails are installed along the perimeter edge of elevated parking areas and along ramps to prevent vehicle accidents. All RhinoStop systems may be configured with pedestrian fall protection reducing the barrier footprint and preserving valuable car parking space.

There are numerous types of guardrail systems. A roadway guardrail barrier is designed to withstand high-speed, low-angle impacts typically encountered along highways and bridges. A car park and warehouse guardrail barrier is designed to withstand lower-speed, high-angle impacts typically encountered during parking activities. These guardrail systems are typically fixed to a concrete foundation and are crash tested at vehicle speeds up to 30 km/h. A fall protection guardrail as described in AS 1657 is designed for installation along roofs, mezzanines and platforms. RhinoStop is a car park and warehouse guardrail barrier system.

Australian Standard AS/NZS 2890.1 provides guidance on the site conditions where a guardrail barrier is required, typically wherever the drop to a lower level exceeds 600 mm. AS/NZS 2890.1 states that guardrail barriers shall comply with the impact loads nominated by AS/NZS 1170.1 Clause 3.8. The impact load conditions are categorised as 30 kN, 240 kN and 40 kN and considers vehicle speed, vehicle mass and height of the impact.

All RhinoStop guardrail barriers are full-scale crash tested to evaluate compliance to Australian Standards. The RhinoStop crash test conditions are selected to exceed the nominated impact loads and reflect Australian driving conditions. This includes crash testing with a 2000 kg vehicle, representing the average mass of a new car sold within Australia, and positioning the RhinoStop barrier on the edge of a 150 mm cantilevered concrete slab to represent a multistorey car park installation. Following crash testing the barrier deformation is measured and the anchors are inspected for damage.

The height of the guardrail barrier considers the impact load condition as described in AS/NZS 1170.1 Clause 3.8. For Light Traffic Areas, the vehicle impact height is 500 mm above ground level. For Medium Traffic Areas, the vehicle impact height is 1000 mm above floor level. RhinoStop barriers can also be configured with pedestrian fall protection to meet site conditions providing an overall system height of 1100 mm through to 2500 mm.

A RhinoStop guardrail system comprises energy-absorbing posts supporting w-beam guardrail. The RhinoPosts may be secured to the concrete foundation with mechanical or chemical anchors. The ends of the w-beam guardrails are typically shielded with fishtails, bullnoses or yellow end caps. If a pedestrian railing is required, a handrail extension may be secured to the RhinoPosts providing support for mesh infill panels or handrails.

RhinoStop guardrail is an all-steel construction featuring hot dip galvanised components providing a durable finish. For specific sites the w-beam guardrails may be powdercoated to enhance the visibility of the barrier, particularly in warehouse environments where the use of safety yellow highlights the safe passage for pedestrians, forklifts or machine operators.

The unique design of RhinoStop features energy-absorbing baseplates reducing the amount of anchors and facilitating rapid installation. Our team of industry experts can guide you through the installation process and provide detailed assembly drawings. RhinoStop is suitable for upgrading existing car parks or new developments. Get in touch with our team directly at 1300 150 733 for more information.

RhinoStop was developed in Australia by Safe Direction to suit the Australian constructor. Safe Direction is a national company with distribution facilities in Sydney, Brisbane, Melbourne, Adelaide and Perth. RhinoStop is available from Safe Direction distributors in Darwin, Hobart and New Zealand.
